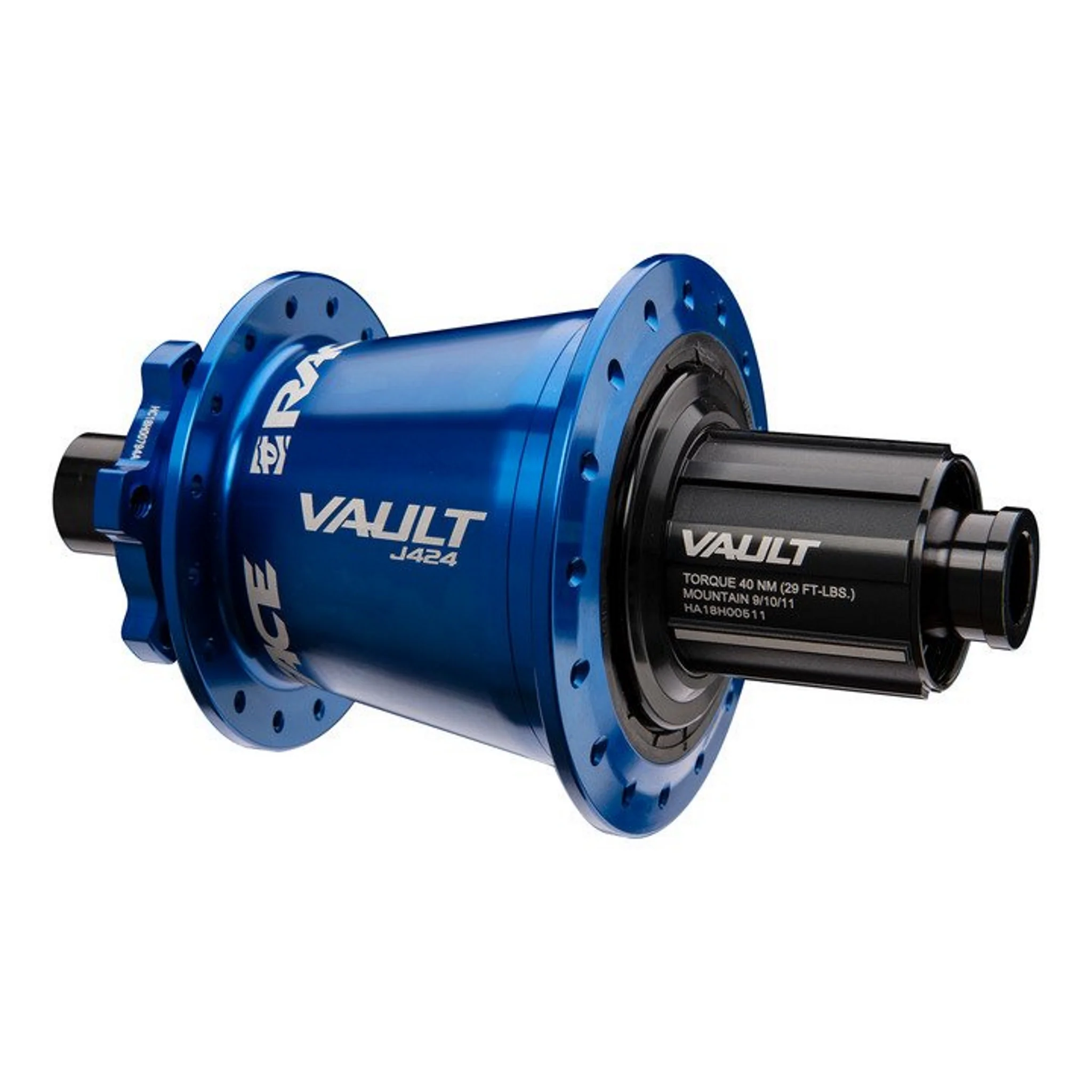

Race Face Hub Vault R 12X148 Boost 424J 32H XD Blue
The super-fast engagement of Race Face's Vault, now available for custom wheel builds. Available in Boost and non-Boost, multiple axle standards and Shimano or XD cassette bodies. An oversized hub shell increases torsional and lateral stiffness and proven 6902 bearings were selected due to their large ball diameter and durability. A 60-tooth drive ring alternately engages six double tooth pawls, giving 3° engagement for near-instant power transfer. Wide bearing placement was designed to decrease load on the bearings, improving lifespan. Protecting these internals are low-drag labyrinth seals designed specifically for the Vault hubs. Finish it off with tool-free endcap swaps and you have a hub that not only moves faster but adapts faster.
J-Bend spoke compatible
Boost and non-Boost options
Shimano or XD cassette body available
6 pawls with 2 teeth each
120 points for 3° of engagement
Tool free end caps
Built for: XC/Trail/Enduro/DH
Available options: Shimano or XD compatible
Rear Hub: 12X148 BOOST, 12X150, 12X157, 12X142, 12X135, 10X135QR
Weight: 305 grams rear
Race Face Hub Vault R 12X148 Boost 424J 32H XD Blue
The super-fast engagement of Race Face's Vault, now available for custom wheel builds. Available in Boost and non-Boost, multiple axle standards and Shimano or XD cassette bodies. An oversized hub shell increases torsional and lateral stiffness and proven 6902 bearings were selected due to their large ball diameter and durability. A 60-tooth drive ring alternately engages six double tooth pawls, giving 3° engagement for near-instant power transfer. Wide bearing placement was designed to decrease load on the bearings, improving lifespan. Protecting these internals are low-drag labyrinth seals designed specifically for the Vault hubs. Finish it off with tool-free endcap swaps and you have a hub that not only moves faster but adapts faster.
J-Bend spoke compatible
Boost and non-Boost options
Shimano or XD cassette body available
6 pawls with 2 teeth each
120 points for 3° of engagement
Tool free end caps
Built for: XC/Trail/Enduro/DH
Available options: Shimano or XD compatible
Rear Hub: 12X148 BOOST, 12X150, 12X157, 12X142, 12X135, 10X135QR
Weight: 305 grams rear
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The super-fast engagement of Race Face's Vault, now available for custom wheel builds. Available in Boost and non-Boost, multiple axle standards and Shimano or XD cassette bodies. An oversized hub shell increases torsional and lateral stiffness and proven 6902 bearings were selected due to their large ball diameter and durability. A 60-tooth drive ring alternately engages six double tooth pawls, giving 3° engagement for near-instant power transfer. Wide bearing placement was designed to decrease load on the bearings, improving lifespan. Protecting these internals are low-drag labyrinth seals designed specifically for the Vault hubs. Finish it off with tool-free endcap swaps and you have a hub that not only moves faster but adapts faster.
J-Bend spoke compatible
Boost and non-Boost options
Shimano or XD cassette body available
6 pawls with 2 teeth each
120 points for 3° of engagement
Tool free end caps
Built for: XC/Trail/Enduro/DH
Available options: Shimano or XD compatible
Rear Hub: 12X148 BOOST, 12X150, 12X157, 12X142, 12X135, 10X135QR
Weight: 305 grams rear
